JavaScript AST manipulation with Babel: AST modification APIs

In previous posts about using Babel for JavaScript deobfuscation, we have used NodePath.replaceWith() method to replace one node with another and NodePath.remove() to remove a single node. Since AST and it’s elements are mutable, we can also modify the AST without traversing it. But there is more to learn about AST modification than what we have seen before. We will go through some more AST modification APIs that should prove to be useful when developing JS deobfuscators.

NodePath.replaceWithMultiple() replaces a single node with a list of nodes.

NodePath.replaceWithSourceString() is a convenience method that takes a source string and parses it for you when replacing the node. However this is inefficient and not recommended. There are better ways to convert a source string (or template) into AST subtree.

We can also insert a node before or after the current node. NodePath.insertBefore() and NodePath.insertAfter() methods can be used for that.

Sometimes there are AST node property arrays that contain multiple child nodes. You may want to to add a single new entry to beginning or end of that array. NodePath.unshiftContainer() prepends a new node and NodePath.pushContainer() appends it to the end of array. However it might be bit confusing on how to use these methods. Consider the following snippet that we want to change:

function say_abc() {
  console.log("a");
  console.log("b");
  console.log("c");
}

say_abc();

Let’s suppose we want to add debugger; before and after the console.log() calls in the function. When we parse this code into AST, we can see that we have a following subtree:

  • FunctionDeclaration
  • body: BlockStatement
    • body: [] (ExpressionStatements)

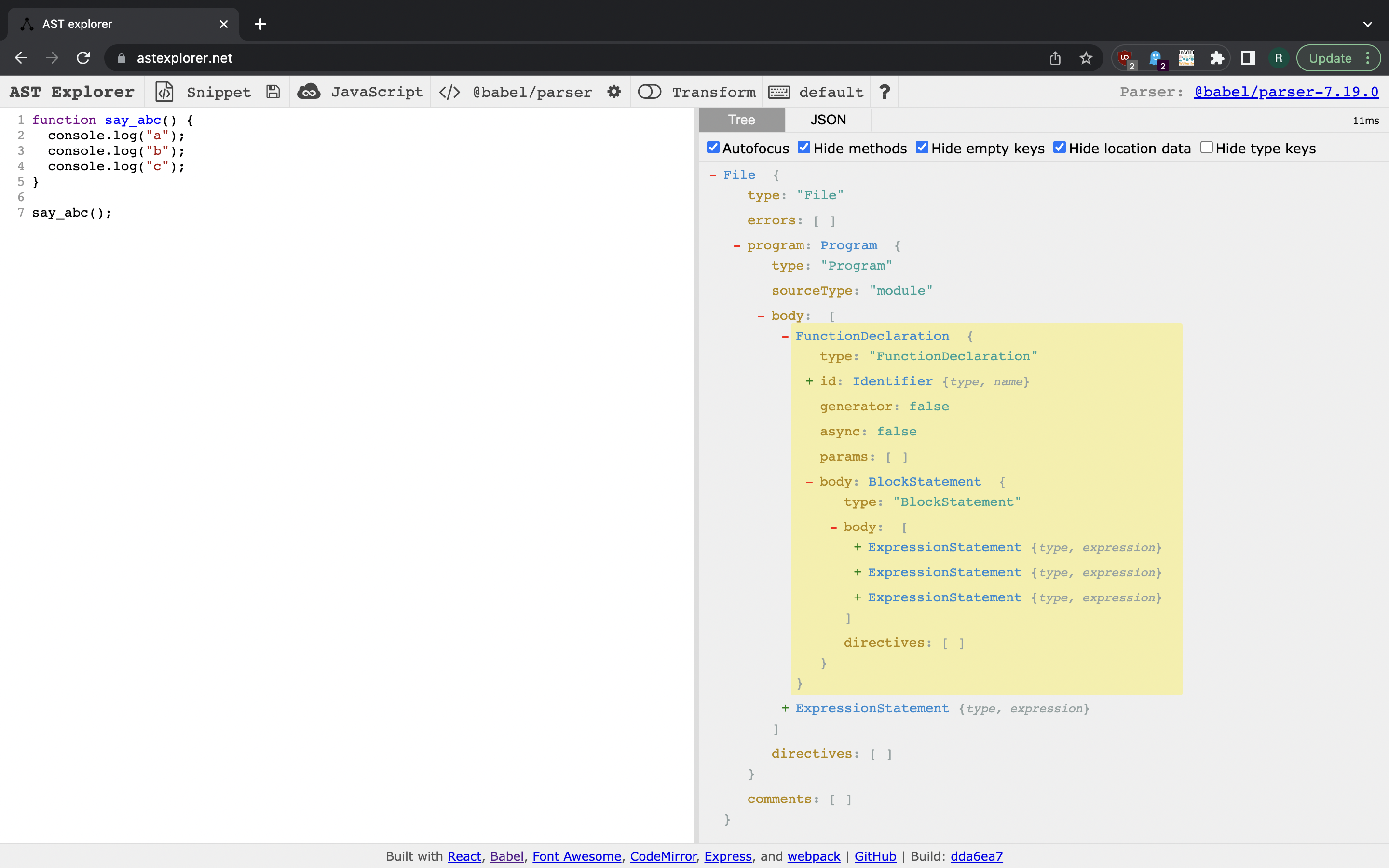

Screenshot 1

We want to modify the function body, so we will get a NodePath for the BlockStatement at body property of FunctionDeclaration. The exact array we want to modify is body of BlockStatement. Thus we call the above methods on BlockStatement object with two arguments: 1) node property name (body) and 2) the node object we want to insert. In AST Explorer we develop the following transform:

export default function (babel) {
  const { types: t } = babel;

  return {
    name: "ast-transform", // not required
    visitor: {
      FunctionDeclaration(path) {
        let body = path.get('body');
        body.unshiftContainer('body', t.debuggerStatement());
        body.pushContainer('body', t.debuggerStatement());
      }
    }
  };
}

As intended, this modifies the toy code snippet into the following:

function say_abc() {
  debugger;
  console.log("a");
  console.log("b");
  console.log("c");
  debugger;
}

say_abc();

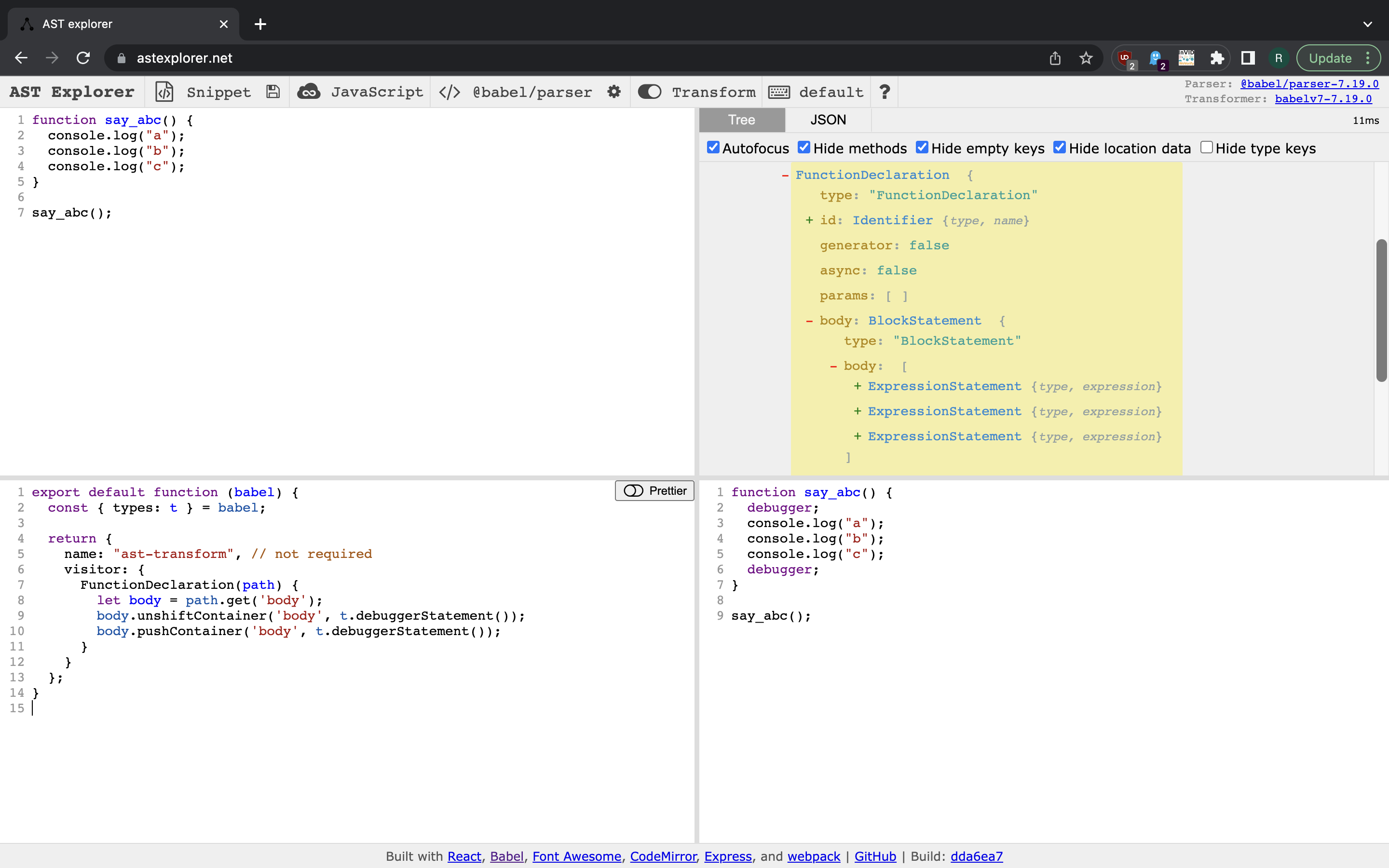

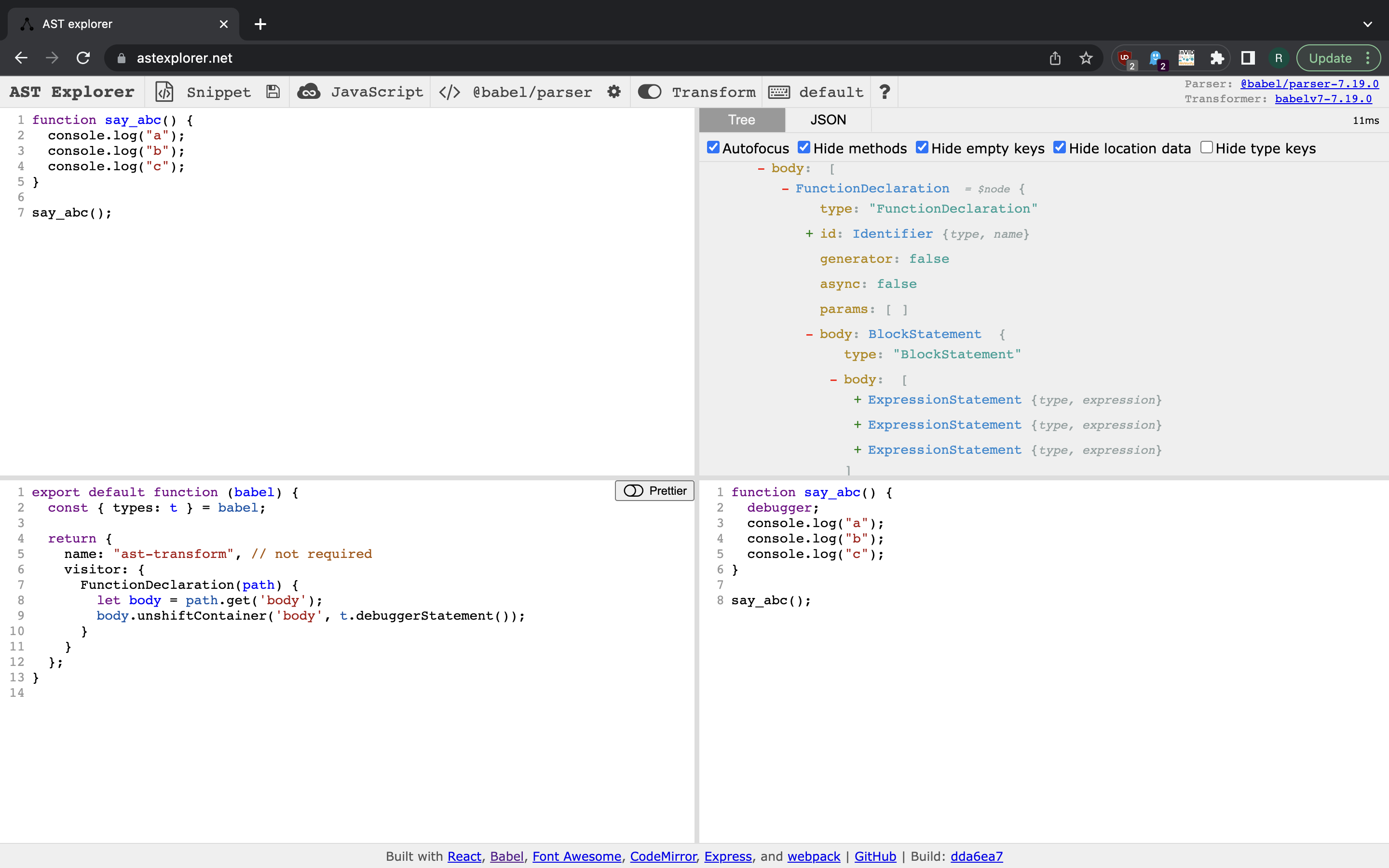

Screenshot 2 Screenshot 3

If for some reason you want to skip traversal of children of current node (e.g. to avoid infinite loop when nodes are being added) you can call NodePath.skip(). To completely stop the AST traversal, you can call NodePath.stop().
