JavaScript AST manipulation with Babel: extracting hardcoded data

When scraping the web one sometimes comes across data being hardcoded in JS snippets. One could be using regular expressions or naive string operations to extract it. However, it is also possible to parse JavaScript code into Abstract Syntax Tree to extract the hardcoded data in a more structured way than by using simple string processing. Let us go through couple of examples.

Suppose you were scraping some site and came across to JS code similar to following example from Meta developer portal:

FB.ui({
  method: 'share',
  href: 'https://developers.facebook.com/docs/'
}, function(response){});

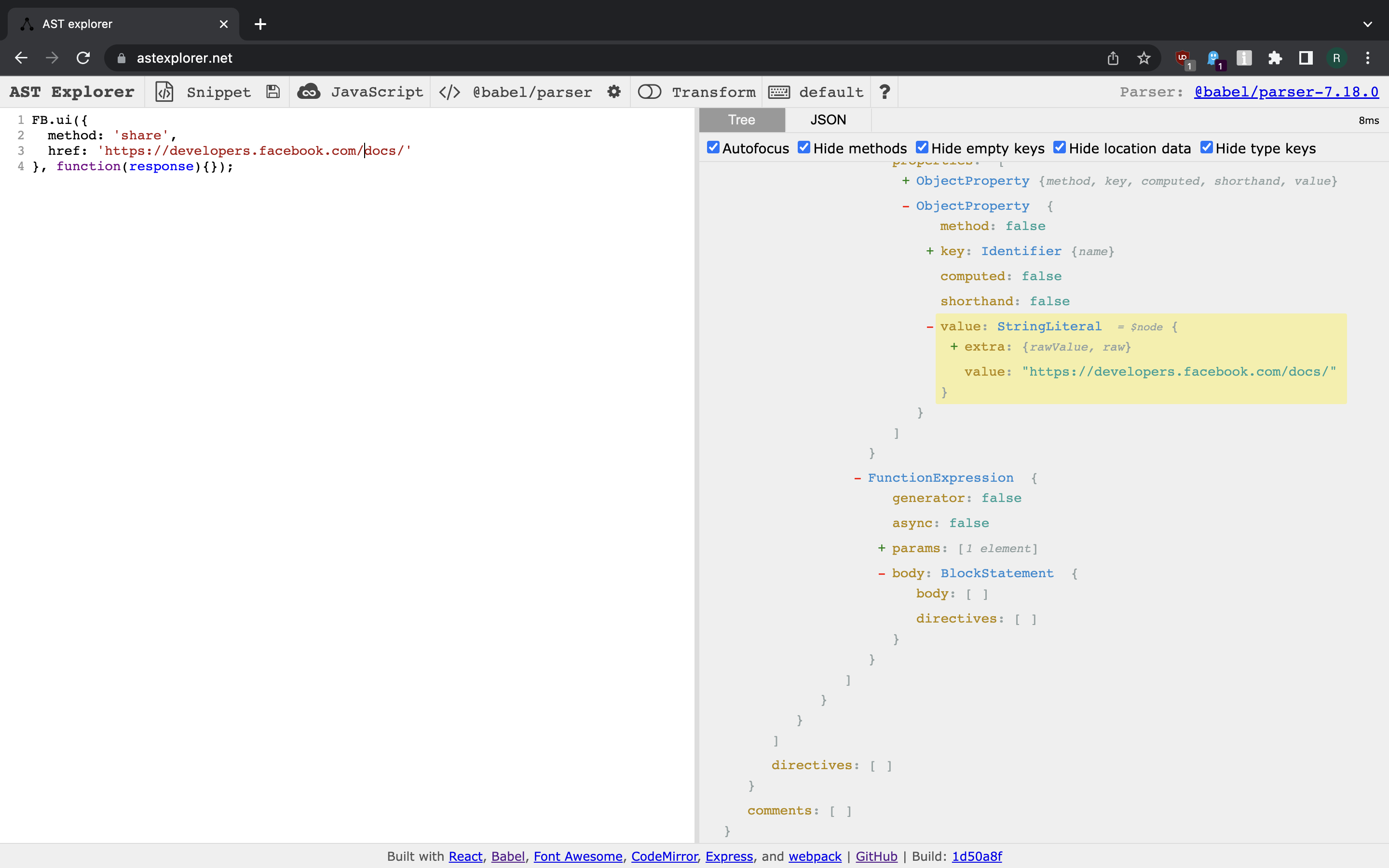

We want to extract the URL that is being shared. Putting this snippet into AST Explorer converts it to AST that we can look into.

Screenshot 1

We can see that each key-value pair in JS object is represented by ObjectProperty node with method boolean property being false. Key is represented by Identifier node and value (in this case) is represented by a StringLiteral). This informs us how to write Node.JS script based on Babel to dig out the URL being shared:

const fs = require("fs");

const parser = require("@babel/parser");
const traverse = require("@babel/traverse").default;

let js = fs.readFileSync("fb_example.js", "utf-8");

const ast = parser.parse(js);

var url = null;

traverse(ast, {
    ObjectProperty: function(path) {
        if (!path.node.method && path.node.key.name == "href") {
            url = path.node.value.value;
        }
    }
});

console.log(url);

If there was more key-value pairs that were interested in it would be fairly trivial to update the code accordingly.

Another form of hardcoded data you may run across is the one that is almost-JSON:

    var data = [
    {
        "tags": [
            "change",
            "deep-thoughts",
            "thinking",
            "world"
        ],
        "author": {
            "name": "Albert Einstein",
            "goodreads_link": "/author/show/9810.Albert_Einstein",
            "slug": "Albert-Einstein"
        },
        "text": "\u201cThe world as we have created it is a process of our thinking. It cannot be changed without changing our thinking.\u201d"
    },
    {
        "tags": [
            "abilities",
            "choices"
        ],
        "author": {
            "name": "J.K. Rowling",
            "goodreads_link": "/author/show/1077326.J_K_Rowling",
            "slug": "J-K-Rowling"
        },
        "text": "\u201cIt is our choices, Harry, that show what we truly are, far more than our abilities.\u201d"
    },

See: http://quotes.toscrape.com/js/

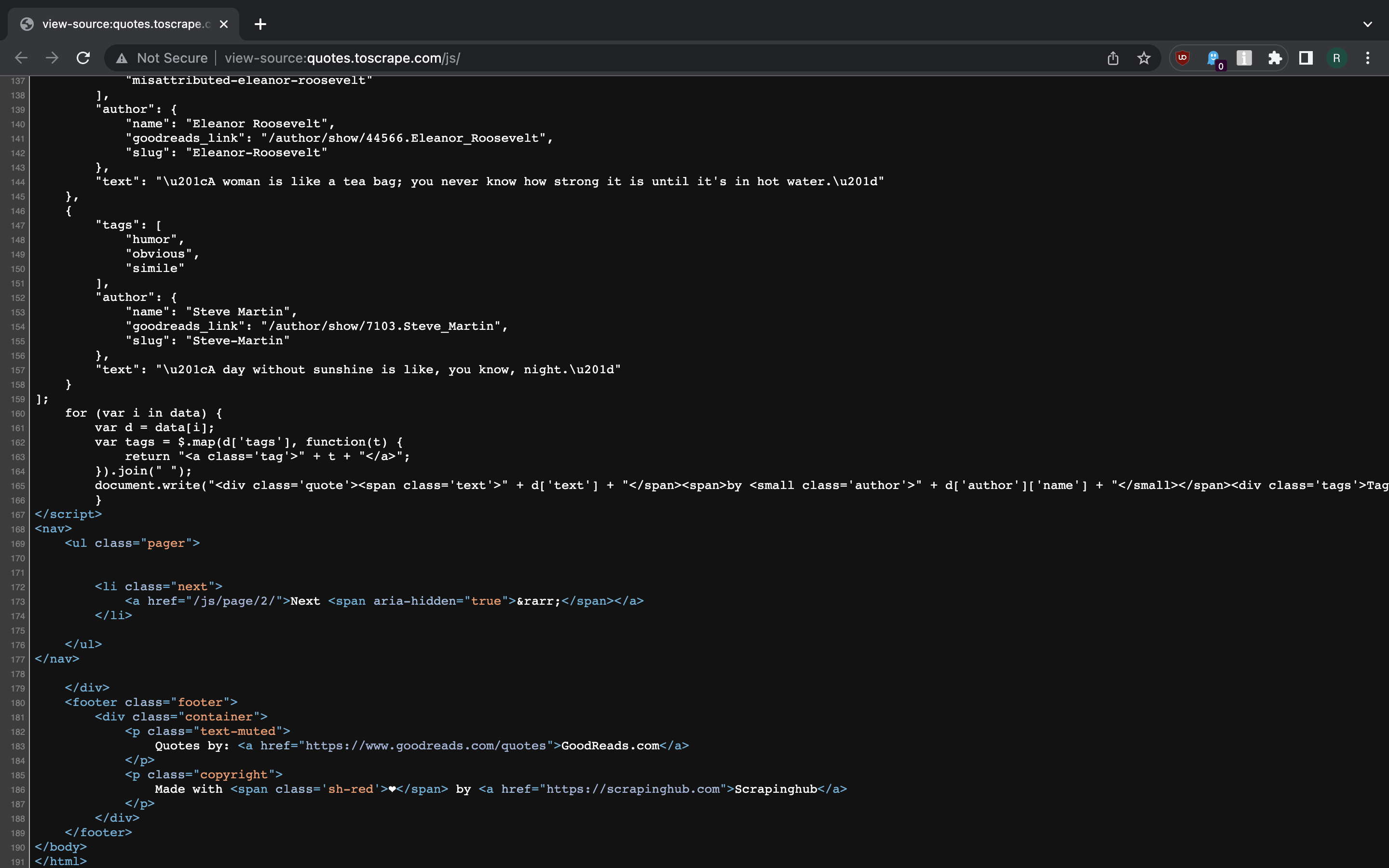

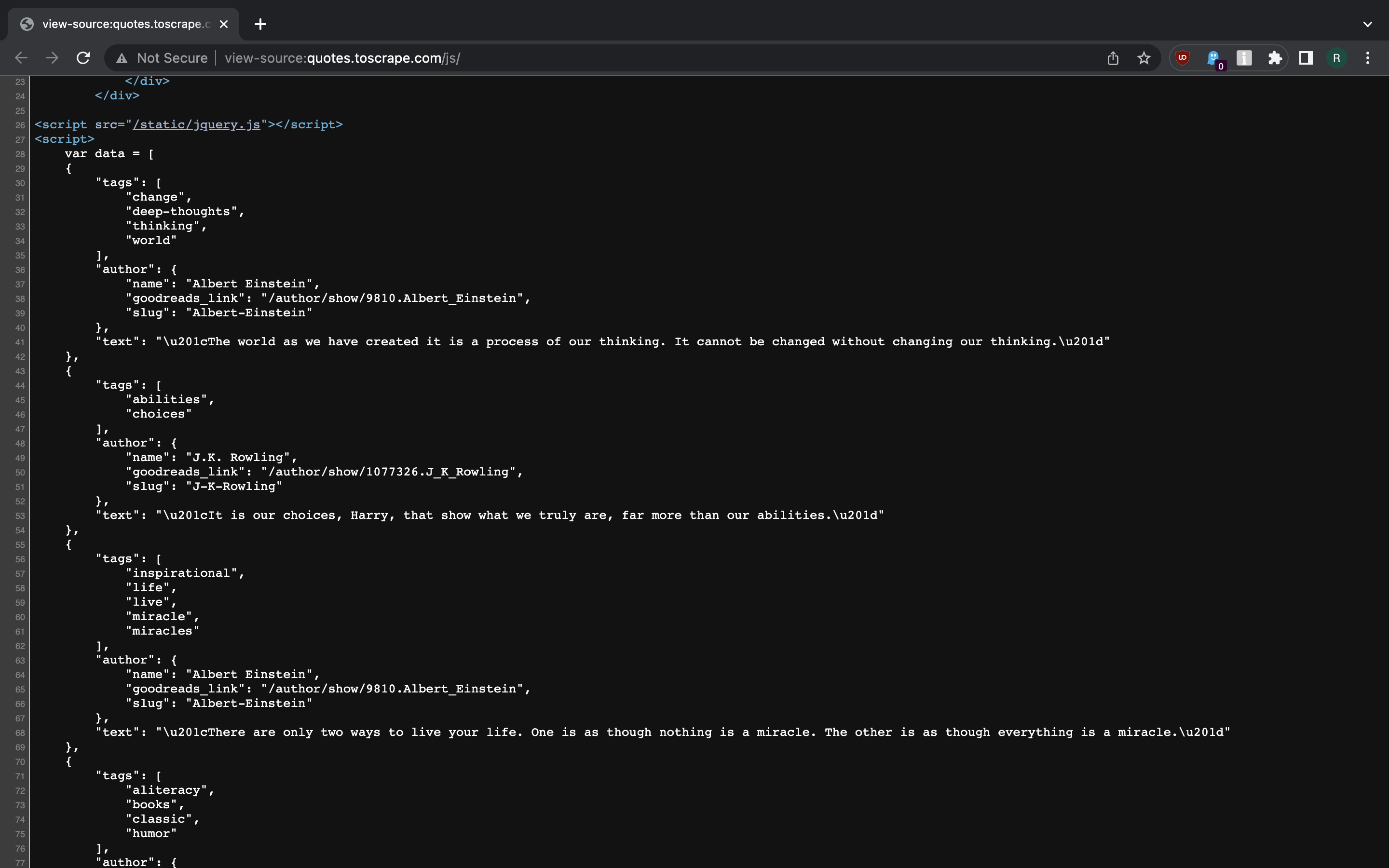

Screenshot 2 Screenshot 3

Once again, let us investigate the AST through AST Explorer web app.

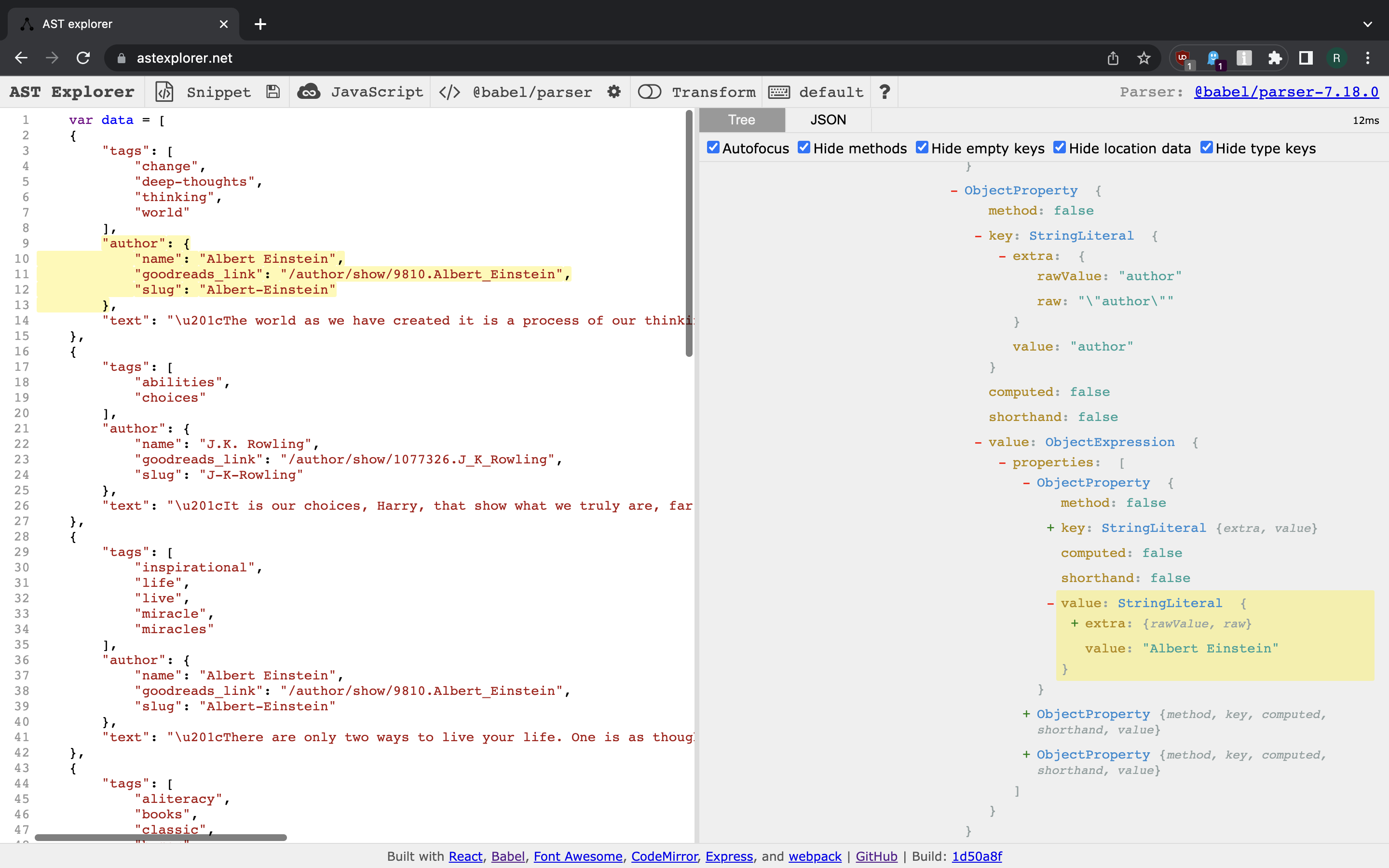

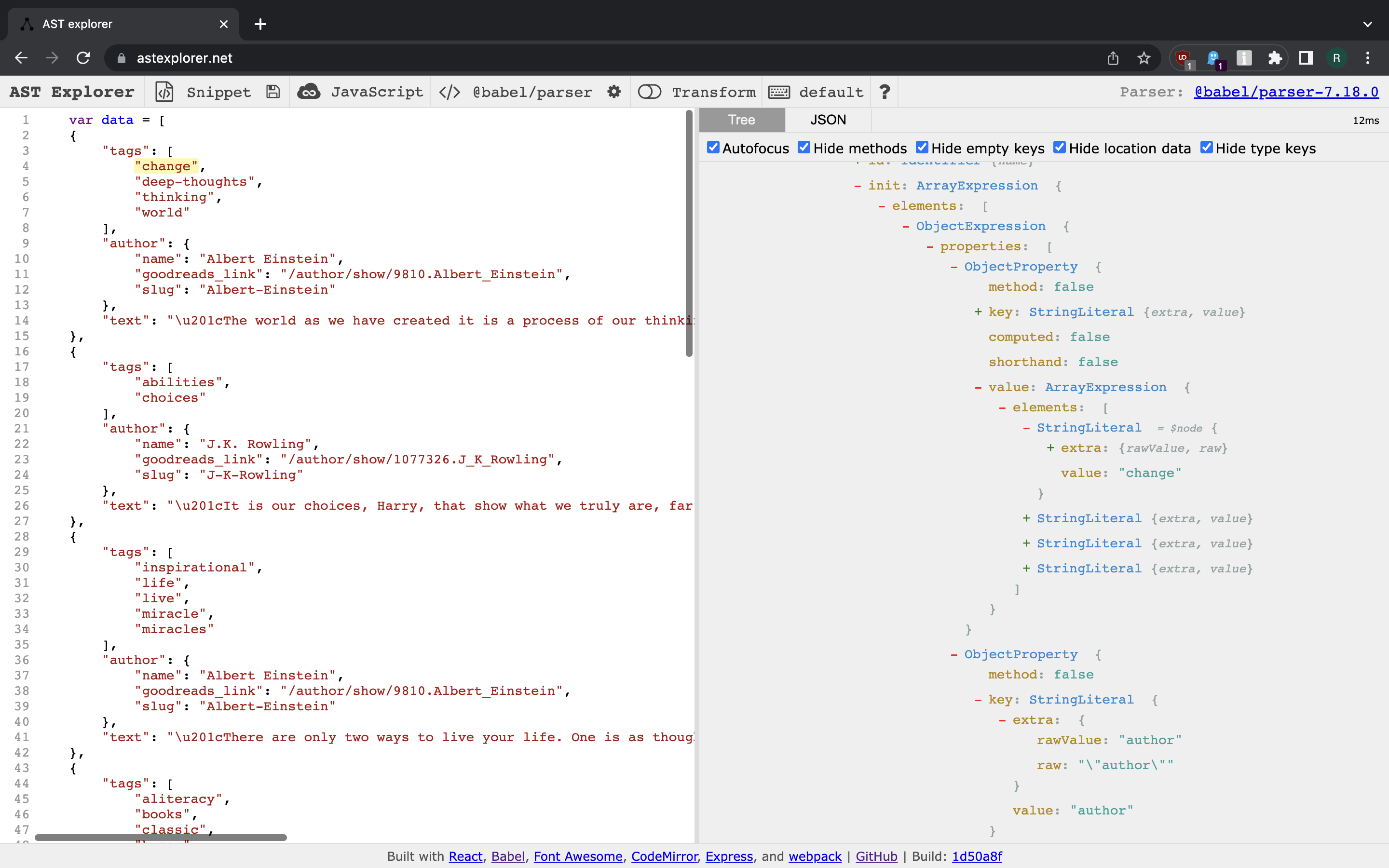

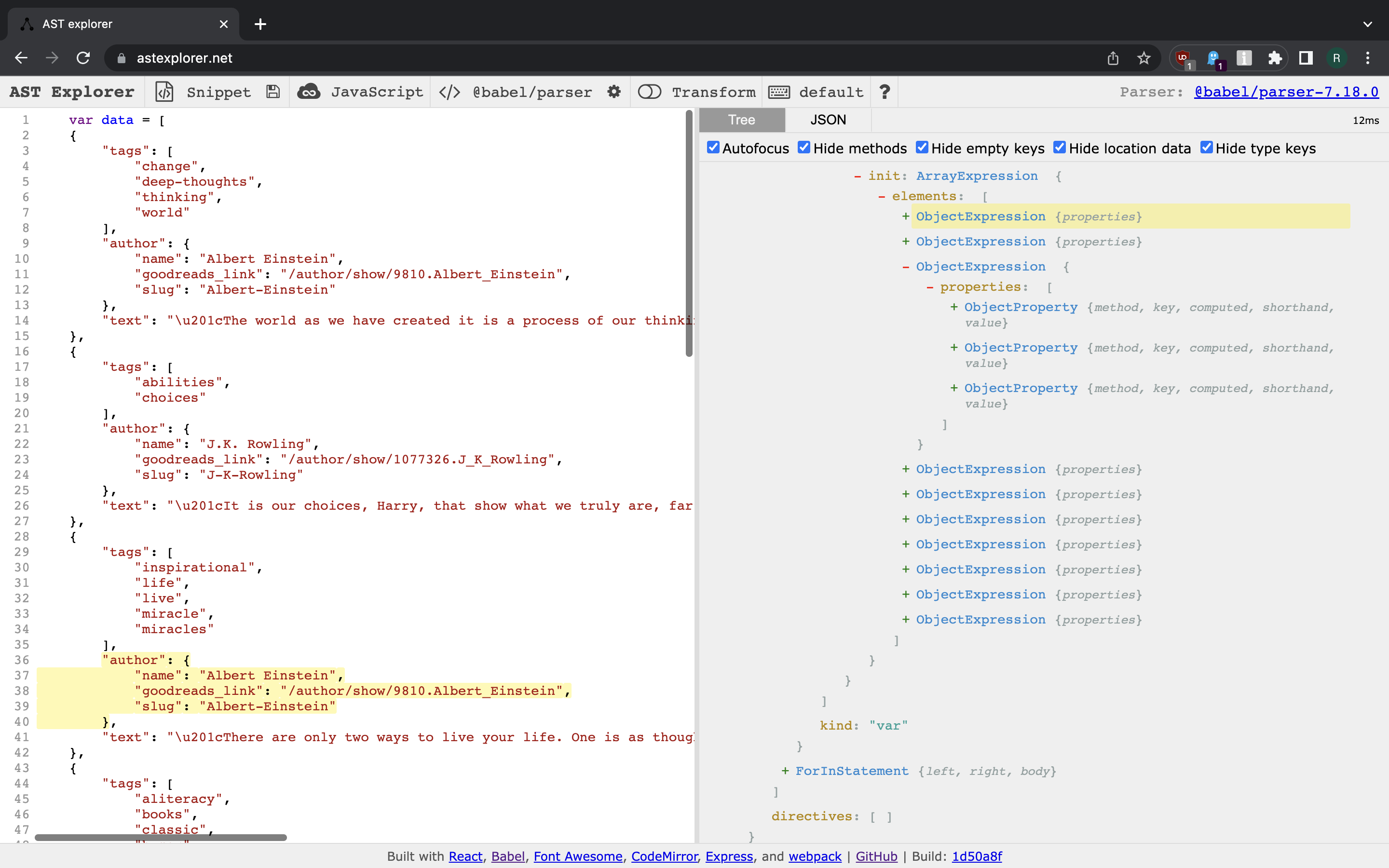

Screenshot 4 Screenshot 5 Screenshot 6

Each member of data array is represented by ObjectExpression. Under each ObjectExpression node, there’s ObjectProperty for each key-value pair. This is similar to previous example now, except that key is represented by StringLiteral node and value is not necessarily represented as StringLiteral due to nestedness of the structure. For example, list of tags is represented by ArrayExpression that has StringLiterals as child nodes.

To keep things short and up to the point, we will save the above JS snippet to a file and process it from there.

const fs = require("fs");

const parser = require("@babel/parser");
const traverse = require("@babel/traverse").default;

let js = fs.readFileSync("quotes.js", "utf-8");

const ast = parser.parse(js);

var rows = [];

traverse(ast, {
    ArrayExpression: function(path) {
        let arrayNode = path.node;
        for (idx  = 0; idx < arrayNode.elements.length; idx++) {
            let node = arrayNode.elements[idx];
            var row = {};

            if (node.properties === undefined)
                continue;

            for (i = 0; i < node.properties.length; i++) {
                let property = node.properties[i];
                if (property.key.value == "text") {
                    row["text"] = property.value.value;
                } else if (property.key.value == "author") {
                    let author_properties = property.value.properties;

                    for (j = 0; j < author_properties.length; j++) {
                        let author_property = author_properties[j];
                        if (author_property.key.value == "name") {
                            row["author_name"] = author_property.value.value;
                        }
                    }
                }
            }

            rows.push(row);
        }
    }
});

console.log(rows);

In this case we match our visitor function to ArrayExpression as it’s the only node of this type in the code being processed. Then we go iterate across ArrayExpression node children that represent elements in the array - each of them is ObjectExpression. Each of these is treated as subtree that correspond to a row of data we want to extract - author name and quote text for each quote. These pieces of data are being extracted by going deeper down the subtree.
