In previous posts we have went through several JavaScript obfuscation techniques and how they could be reversed by applying Abstract Syntax Tree transformations. AST manipulation is a powerful skill that is of particular importance in certain kinds of grayhat programming projects. Earlier, we have focused on how exactly AST could be changed to undo specific kinds of obfuscations. This time, however, we will take a bit broader look into Babel to see how it facilitates development of AST manipulation code that goes beyond a single AST transformation.
In one of the posts we have shown some trivial examples of AST manipulation:
- Undoing hexadecimal string encoding
- Converting bracket notation to dot notation
- Removing excessive semi-colons from the code
First, let me show a way to prototype AST transforms in ASTExplorer. Let us put the following code in there:
console["log"]("\x41\x42\x43"); // ABC
;;;;;console.log("123");;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

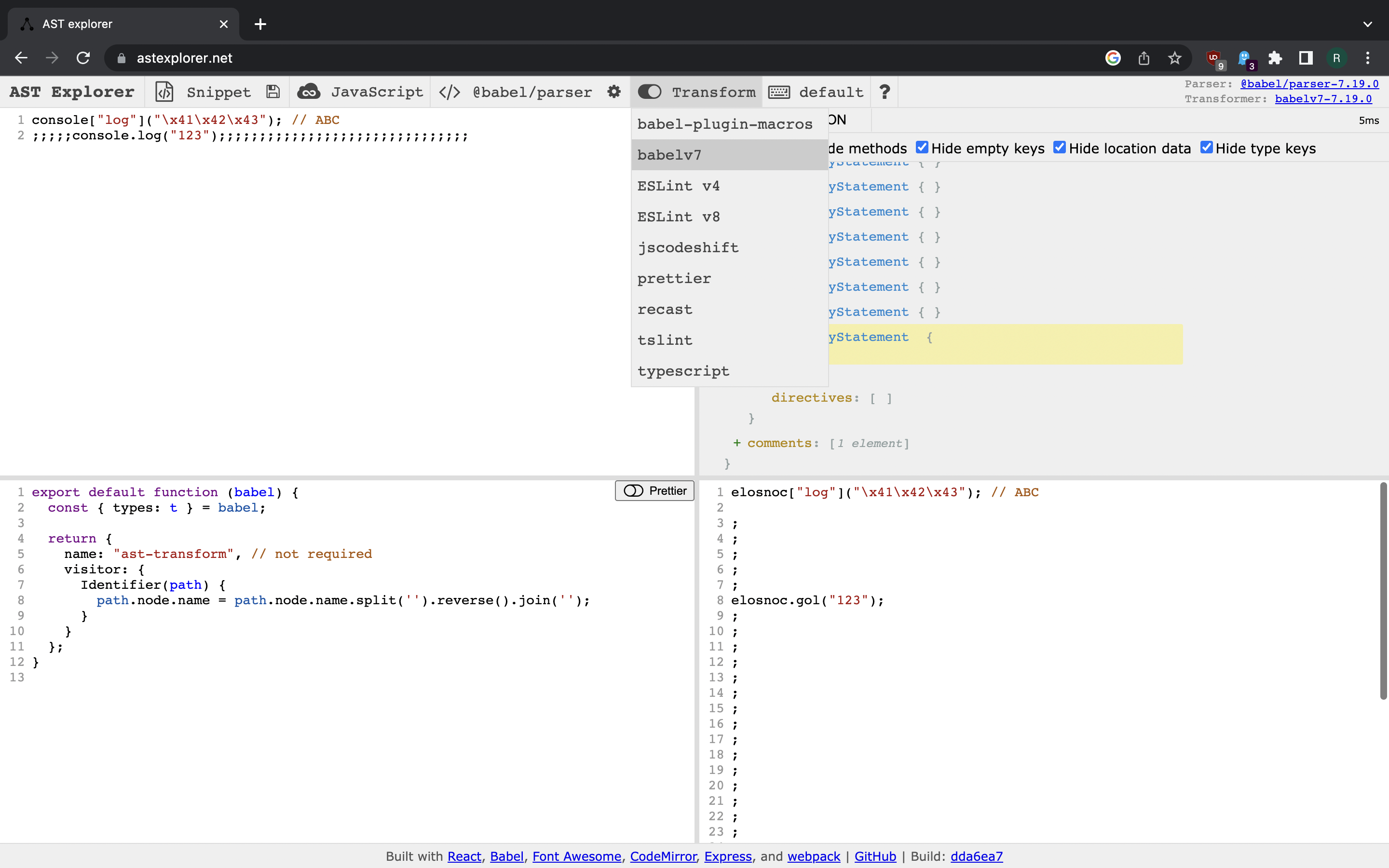

Make sure that JavaScript is chosen in the language drop-down menu and
@babel/parser is selected in the parser drop-down. Press the “Transform”
switch and choose babelv7. Now we have two new UI sections here.
On the bottom left, there’s a transform code editing section. By default ASTExplorer gives you the following example code that reverses the order or characters in identifier names:
export default function (babel) {
const { types: t } = babel;
return {
name: "ast-transform", // not required
visitor: {
Identifier(path) {
path.node.name = path.node.name.split("").reverse().join("");
}
}
};
}
On the bottom right section we have the JS code that is the result of this transformation.
The current transform by itself is quite useless, but we can change it to our needs. Note that there is no boilerplate code for reading the JS source code and writing it back into files. Just the AST transform that is the core of what we are doing here.

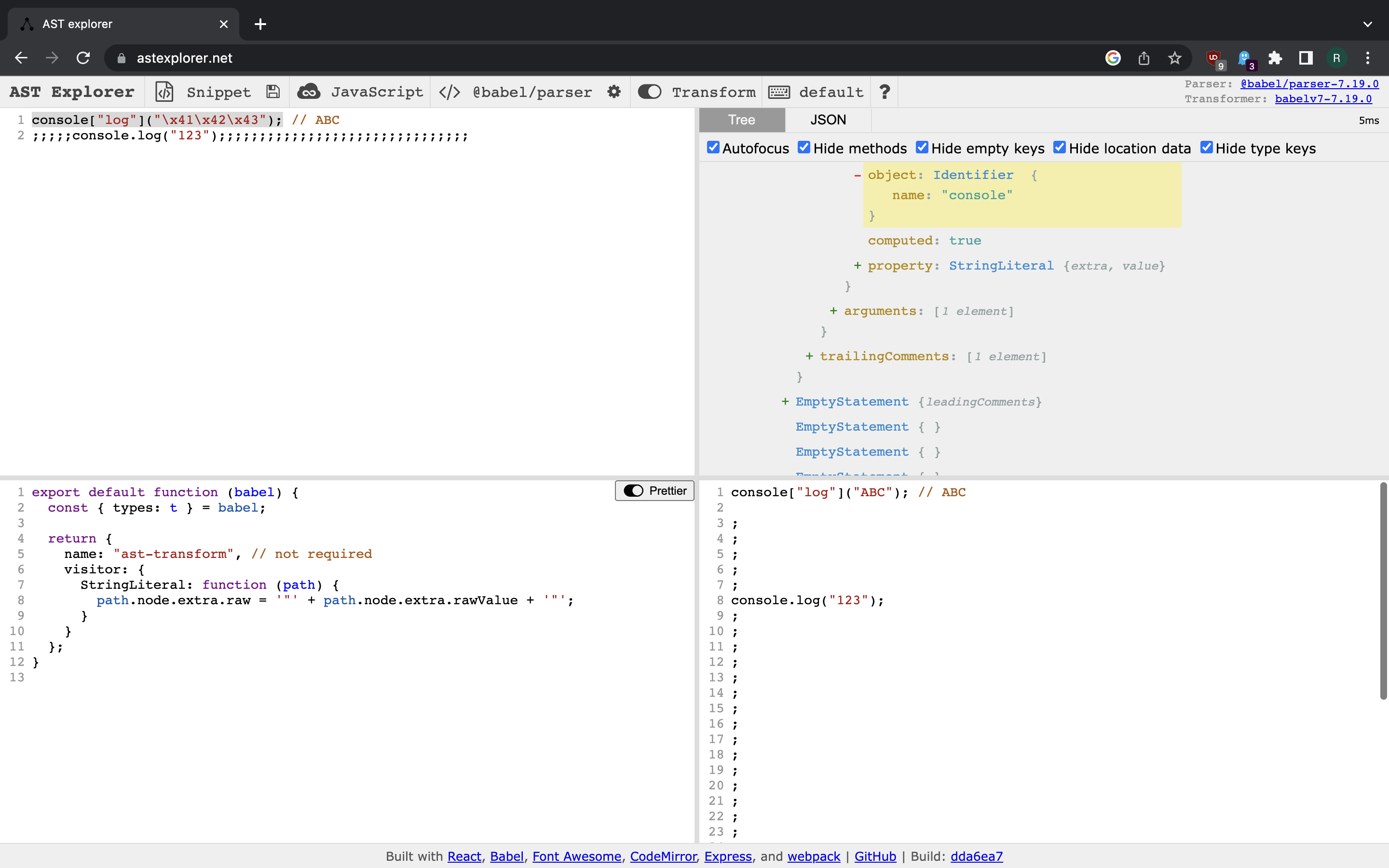

Let us change the visitor function to undo hexadecimal string encoding:
export default function (babel) {
const { types: t } = babel;
return {
name: "ast-transform", // not required
visitor: {
StringLiteral: function (path) {
path.node.extra.raw = '"' + path.node.extra.rawValue + '"';
}
}
};
}
We can see that console["log"]("\x41\x42\x43"); from the input indeed became
console["log"]("ABC"); in the output.
Since other two changes we want to make work on different node classes, we
can extend the top visitor object to include them as well:
export default function (babel) {
const { types: t } = babel;
return {
name: "ast-transform", // not required
visitor: {
StringLiteral: function (path) {
path.node.extra.raw = '"' + path.node.extra.rawValue + '"';
},
CallExpression: function (path) {
let prop = path.node.callee.property;
if (t.isStringLiteral(prop)) {
path.node.callee.property = t.Identifier(prop.value);
path.node.callee.computed = false;
}
},
EmptyStatement: function (path) {
path.remove();
}
}
};
}

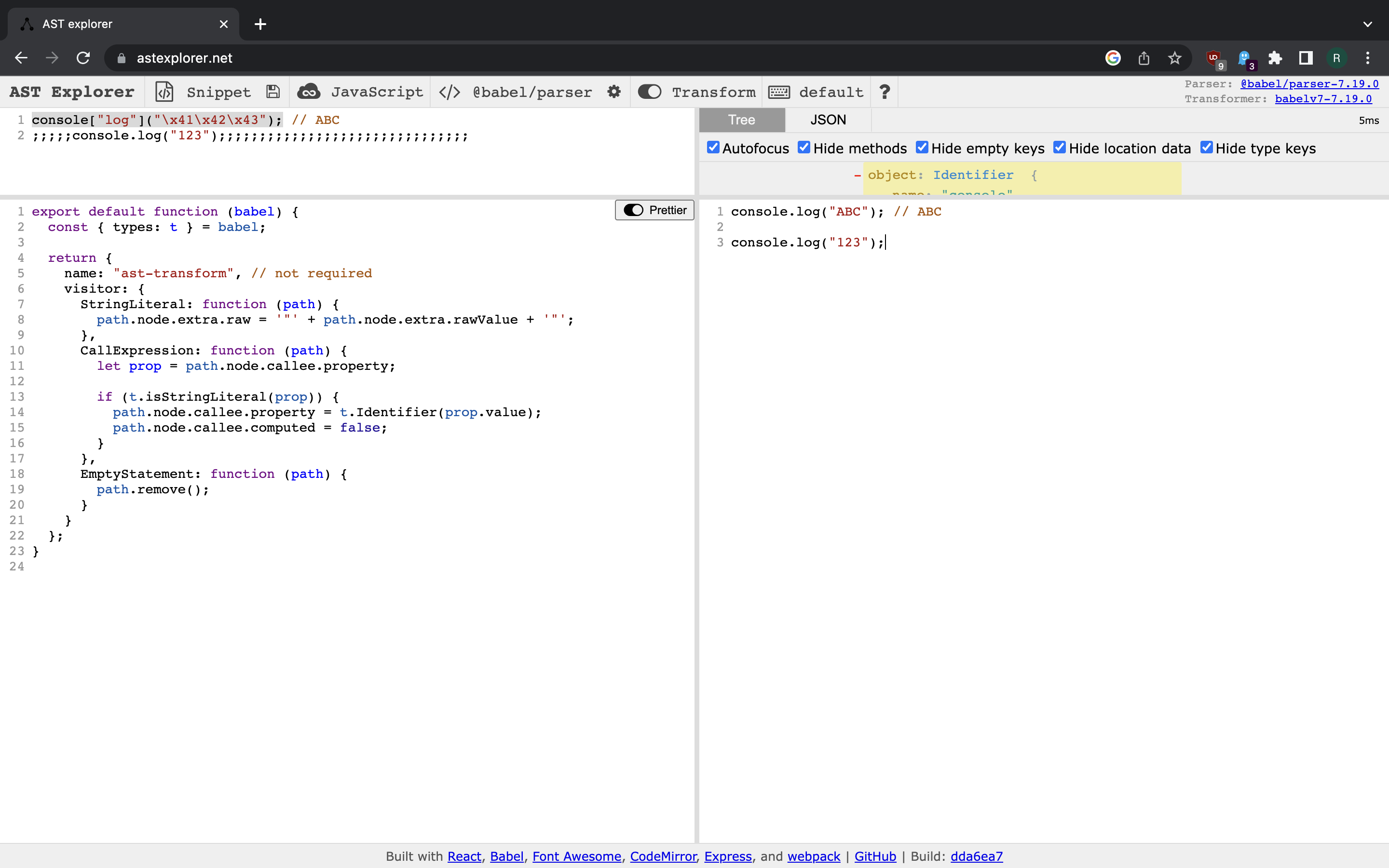

This cleaned up the code into the following form:
console.log("ABC"); // ABC
console.log("123");
That’s nice, but our transform code is not particularly clean, as we are performing three different kinds of changes in one go. It does not matter much for simple example like this, but real-world deobfuscators will involve far more complexity and should be written with one of the best programming practices in mind: keeping stuff separate without letting it became a single intractable mess of spaghetti code. Thus we want a better structure in our code.
Babel is developed with plugin architecture in mind. Babel plugin is pluggable
piece of code that does a single change to the AST being processed. In our
example, there would be one plugin for undoing the hexadecimal string encoding,
another for converting bracket notation to do notation and third one for
removing EmptyStatement nodes. There’s also a concept of preset - a
collection of plugins that make up some greater workflow, such as converting
the code between JavaScript dialects or undoing the entire set of obfuscation
techniques that antibot vendor is applying.
Let us save the input code from AST Explorer into input.js and write a single deobfuscator that benefits from Babel plugin architecture to a greater degree.
Consider the following code:
const fs = require("fs");
const path = require("path");
const babel = require("@babel/core");
const t = require("@babel/types");
const result = babel.transformFileSync(path.join(__dirname, 'input.js') , {
plugins: [{
name: "undo_hexadecimal_strings",
visitor: {
StringLiteral: function (path) {
path.node.extra.raw = '"' + path.node.extra.rawValue + '"';
}
}
}, {
name: "bracket_to_dot",
visitor: {
CallExpression: function (path) {
let prop = path.node.callee.property;
if (t.isStringLiteral(prop)) {
path.node.callee.property = t.Identifier(prop.value);
path.node.callee.computed = false;
}
}
}
}, {
name: "rm_needless_semicolons",
visitor: {
EmptyStatement: function (path) {
path.remove();
}
}
}]
});
console.log(result.code);
fs.writeFileSync(path.join(__dirname, 'output.js'), result.code, 'utf-8');
In our previous code in the previous posts, we had parsing, AST traversal,
code generation as separate steps, which is good for understanding what’s going
on in the code, but introduces a bit of repetitive boilerplate. Now we are using
transformFileSync() function that does all three steps for us. It takes
a file path to input JS file and a list of plugins. Each plugin is a
named AST manipulation step that entails one or more visitor functions that are
associated with certain types of AST nodes.
Asynchronous equivalent to this function would be transformFile(). There’s
also transform(), transformSync() and transformAsync() that take JS code
a string without reading it from the file.
Plugin code can be quite long and complex, which makes us want to keep it in one or more separate files. Babel allows that as well. Let us move the plugin code out of the main script by creating new files for each plugin.
First plugin file (plugin_unhex.js) would be as follows:
const babel = require("@babel/core");
const t = require("@babel/types");
module.exports = function (babel) {
return {
name: "undo_hexadecimal_strings",
visitor: {
StringLiteral: function (path) {
path.node.extra.raw = '"' + path.node.extra.rawValue + '"';
}
}
}
};
Next file, plugin_unbracket.js would be like this:
const babel = require("@babel/core");
const t = require("@babel/types");
module.exports = function (babel) {
return {
name: "bracket_to_dot",
visitor: {
CallExpression: function (path) {
let prop = path.node.callee.property;
if (t.isStringLiteral(prop)) {
path.node.callee.property = t.Identifier(prop.value);
path.node.callee.computed = false;
}
}
}
}
};
The third and last plugin file would contain the following code:
const babel = require("@babel/core");
const t = require("@babel/types");
module.exports = function (babel) {
return {
name: "rm_needless_semicolons",
visitor: {
EmptyStatement: function (path) {
path.remove();
}
}
}
};
By moving all three plugins to their own files, we can simplify the main script to this:
const fs = require("fs");
const path = require("path");
const babel = require("@babel/core");
const t = require("@babel/types");
const result = babel.transformFileSync(path.join(__dirname, 'input.js') , {
plugins: [
path.join(__dirname, 'plugin_unhex.js'),
path.join(__dirname, 'plugin_unbracket.js'),
path.join(__dirname, 'plugin_rm_empty.js')
]
});
console.log(result.code);
fs.writeFileSync(path.join(__dirname, 'output.js'), result.code, 'utf-8');
Now that is far cleaner and less nested than it was before.

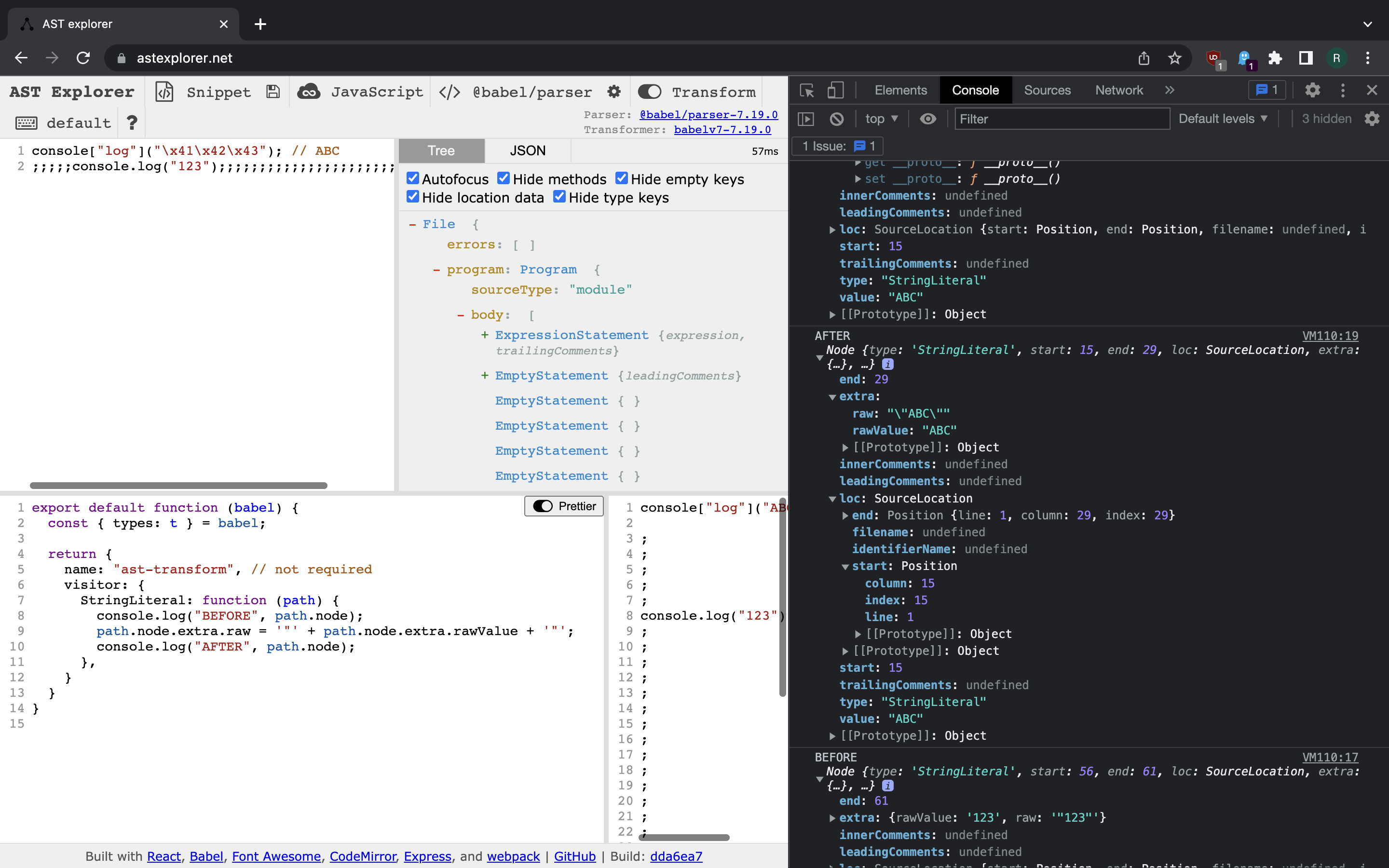

Before we’re finished here, you may want to know one neat trick in ASTExplorer.
When you call console.log() on a Babel object such as node, path, scope and
open Chrome DevTools you can inspect various properties to debug your
transformations.
To learn more about Babel plugin development, see:
