Sometimes, when developing server-side software it is desirable to make it accessible for access outside the local network, which might be shielded from incoming TCP connections by a router that performs Network Address Translation. One option to work around this is to use Ngrok - a SaaS app that lets you tunnel out a connection from your network and exposes it to external traffic through a cloud endpoint. However, it is primarily designed for web apps and it would be nice if we didn’t need to rely on a third-party SaaS vendor to make our server software accessible outside our local network.

Tor is an overlay network for anonymous communications and censorship circumvention. The goal of Tor is to prevent the gathering and analysis of traffic metadata (also known as traffic analysis). A detailed explanation of how Tor works is outside the scope of this text, but the key principle is that hiding of routing information is achieved by creating tunnel connection through 3 (or more, if both parties are within Tor network) intermediate servers with telescoping encryption layers - 3 layers of encryption to the first node, 2 layers of encryption to middle node and 1 layer towards the exit node. The exit node removes the final layer of encryption and works as a proxy server towards the ultimate destination of TCP connection. Thus no single server is aware of both initiator and destination of TCP connection.

Through a Tor feature called Onion Services, hiding a server is possible as well. Turns out, setting up an Onion Service gives us NAT traversal for free, provided that people accessing our server are okay to do it through Tor.

Tor daemon is a piece of software that implements all parts of the Tor network. For configuration during runtime, it can expose a control port that we can connect to via TCP transport and run various requests against a running Tor instance. Tor Control Protocol is a relatively simple text-based network protocol that defines requests and responses that Tor controllers (i.e. programs interacting with Tor instance via control port) must be able to parse and generate. One of the commands it defines is ADD_ONION at Section 3.27 that enables quick creation of Onion Services. We can provide cryptographic keys to be used for this, but primarily we are concerned with port mapping between the local port that our server is bound to (it’s fine if it’s binding the listener socket to the local host address) and the port that Onion Service will be exposing. These can be either equal or different, but it is an important detail to get right. Furthermore, ephemeral Onion Services are bound to the lifecycle of control port connection - no need to worry about removing them.

We could be doing a little socket programming, but we don’t have to, as the Tor project is also developing Stem - a Python module that implements a Tor Control Protocol and enables us to quickly launch an ephemeral Onion Service.

I wrote the following quick script that connects to a local Tor instance (it could be a Tor browser bundle running locally) through the control port, creates ephemeral Onion Service, uses its address to build this very blog through Hugo, and runs a local web server (http.server from vanilla Python installation) on local port 8080.

#!/usr/bin/python3

from stem.control import Controller

import http.server
import os
import subprocess
import sys

def main():
    controller = Controller.from_port()
    controller.authenticate()
    response = controller.create_ephemeral_hidden_service({80: 8080}, await_publication=True)

    assert(len(response.service_id) > 0)

    onion_url = "http://" + response.service_id + ".onion"
    print(onion_url, file=sys.stderr)

    os.chdir("tricksterblog/")

    subprocess.run(["hugo", "--baseURL", onion_url])

    os.chdir("public/")

    subprocess.run(["python3", "-m", "http.server", "8080"])


if __name__ == "__main__":
    main()

To encapsulate everything within a reproducible environment, the following Docker configuration could be used:

FROM debian:11

RUN apt-get update && apt-get install -y python3 python3-pip hugo tor
RUN pip3 install stem

ADD . /trickster.dev
WORKDIR /trickster.dev

ENTRYPOINT bash -c "tor --RunAsDaemon 1 --ControlPort 9051 && python3 run_onion_service.py"

Admittedly there are some opportunities for optimization here, as the size of resulting Docker image is over 700 MB. However the code in this post is meant to be only a demonstration for using Tor to expose a server in a NATted network.

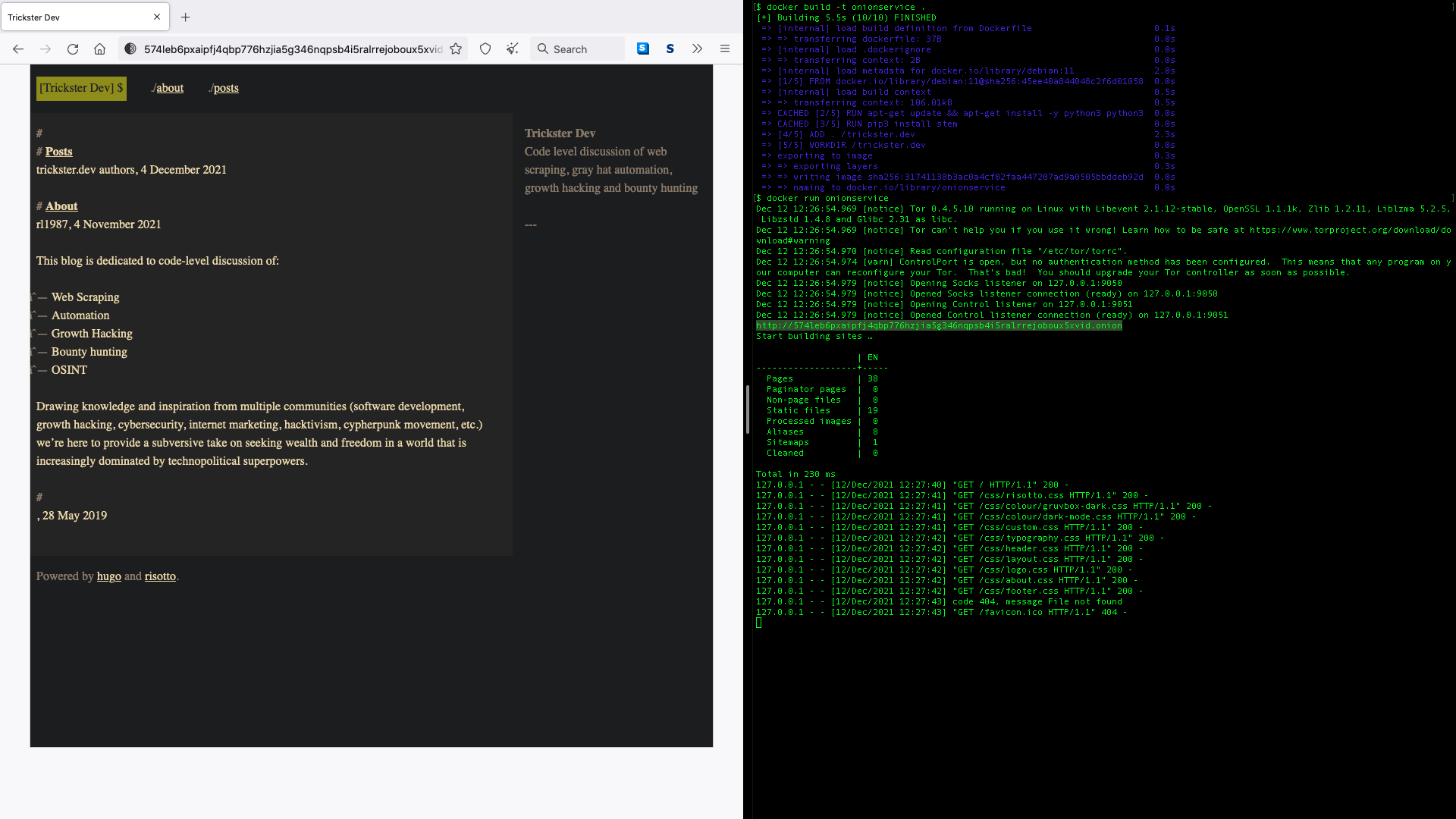

Screenshot

Lastly, I would not recommend doing this in corporate networks, as your IT department and security people might disapprove. Not only this solution can be considered to be Shadow IT, but using Tor in the corporate environment might raise suspicions of data exfiltration. Proceed with caution.
